Dellorto PHF36 Carburetor kit. The # 1 Performance choice in "Mintons" Hopup Mods.
Carbs Originally designed for 750cc 2 Valve Laverda's, Ducatis and Moto
Guzzi's.

These Kits feature 36mm. Dellorto Carbs with Accelerator pumps, Velocity Stacks,
flip chokes, Dyno developed jetting, 2-1 Throttle Cable and XS Performance Pods.
Throttle Cable in kit fits 77-84 XS650 single cable throttle housings.


Our kit was Dyno Developed by Heiden Tuning and delivers an average 10
percent power gain thru all RPM's. Kits are suitable for 650-860cc engines
engines with non stock, free flowing exhausts. Accelerator pumps provide
noticeable power boosts. Dellorto carb jetting has been extensively tested
and matched to our components.

Mounts with Stock XS650 (80-84) BS 34 CV Carb Holders (Not included).

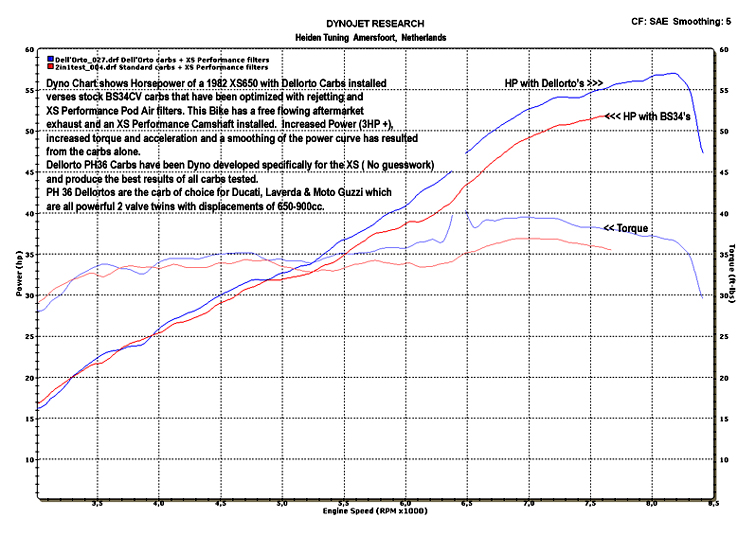

Dyno Test Sheet

Replacement 2-1 throttle cable for our PHF36 Dellorto Carb Kit.
Fits: XS#48-7000 Carb set to 1977-84 XS650 stock single cable throttle
assembly.

52mm. XS Performance motorcycle Pod Air Filter replacement to fit our XS#48-7000 carb kit.
Pod fits to velocity stack on Dellorto PHF36 carbs (this combination has been
shown on Dyno tests to give the most power).

Pod filter is a New Mikes XS Performance item and is an improved replica
(Dyno developed) of the most popular brand on the market. Chrome end cap,
internal moulded stack and no step rubber mount.

Pod filter is supplied dry but cotton gauze filtration material may be oiled for
improved dust filtration.

Fits: 1970-79 stock Mikuni BS38 CV Carbs + some Mikuni TM aftermarket carbs.

#135 Main Jet - D64-135 (Pr.) to fit Dellorto PHF36 Carbs (Kit XS# 48-7000).

#137 Main Jet - D64-137 (Pr.) to fit Dellorto PHF36 Carbs (Kit XS# 48-7000).

#140 Main Jet - D64-140 (Pr.) to fit Dellorto PHF36 Carburetors (Kit XS# 48-7000).

#142 Main Jet - D64-142 (Pr.) to fit Dellorto PHF36 Carburetors (Kit XS# 48-7000).

#145 Main Jet - D64-145 (Pr.) to fit Dellorto PHF36 Carburetors (Kit XS# 48-7000).
This is the stock size included with our Dellorto Carbs.

#148 Main Jet - D64-148 (Pr.) to fit Dellorto PHF36 Carbs (Kit XS# 48-7000).

# 65 Pilot Jet - D1486-065 (Pr.) to fit Dellorto PHF36 Carbs (Kit XS# 48-7000).
This is the size used in our Dellorto Carb kit - XS# 48-7000

K5 Dellorto Slide Needle. This is the size used in our Dellorto Carb Kit - XS
48-7000.

#300 Dellorto Float Valve D8649-X300 ( Needle & Seat Assembly ).
Fits PHF 36 Dellorto Carburetors

Carb Float as used in Dellorto PHF36 Carburetors

Float Bowl mounting nut Gasket D2778 (Pr.). Fits: Dellorto PHF36 Carburetors.

OEM Reference #
• 256-14956-01-00

Dellorto PHF36 Carburetor Float Bowl O-Ring D7451.

Velocity Stack - Threaded 48 x 30 mm L

Straight carb top Cable Adjuster D8931 to fit Dellorto PHF36 Carburetors.
Note: Using this item will require shortening the carb side of the # 51-7502
throttle cable included with our XS#48-7000 Carb kit.

90 Degree carb top cable adjuster D53036 to fit Dellorto PHF36 Carburetors.
This item matches adjuster used on XS#48-7000 carb kit.
Includes Rubber Adjuster Boot.

Carb Top O-Ring D8533 to Fit PHF36 Carburetor Top.

Straight carb top Cable Adjuster D8931 to fit Dellorto PHF36 Carburetors.
Note: Using this item will require shortening the carb side of the # 51-7502
throttle cable included with our XS#48-7000 Carb kit.

Rubber Boot D1476 - Fits: Carb top cable adjuster of PHF36 Dellorto Carburetors.

Spring D7415 - Fits at base of (under) accelerator pump actuation arm (arm under
carb top that fits in slide groove). This small spring is easily damaged if
carb top is not carefully/correctly assembled in slide groove and to the carburetor
body.

Light tension carb Slide Spring D8550 as used in our XS#48-7000 PHF36 Carburetor Kits.

O-Ring D6173 for Accelerator pump Nozzle as used on Dellorto PHF36 Carburetors.
Note: Also fits Choke Jet (fuel pickup in float bowl).

Fibre Washer D6426 for Accelerator Pump Nozzle screw head.
Fits: PHF36 Dellorto carburetors.

Accelerator Pump Base Gasket D9278. Fits at base of accelerator pump where it
mounts to the Dellorto PHF36 Carburetor

Dellorto PHF36 Fuel inlet/Filter screen cover D9250.

Carb Fuel Filter screen D6109 (round Disc type). Fits under Fuel inlet/cover.
Fits: PHF36 Dellorto Carburetor

D8678 Mixture Screw O-Ring (pr.) to fit mixture screws of PHF36 Dellorto Carbs.
This is for a pair of o-rings only (# 48-7012).

D8260 Mixture Screw Washers (Pr.) to fit mixture screws of PHF36 Dellorto carburetors.
This is for a pair of washers only (# 48-7013).
