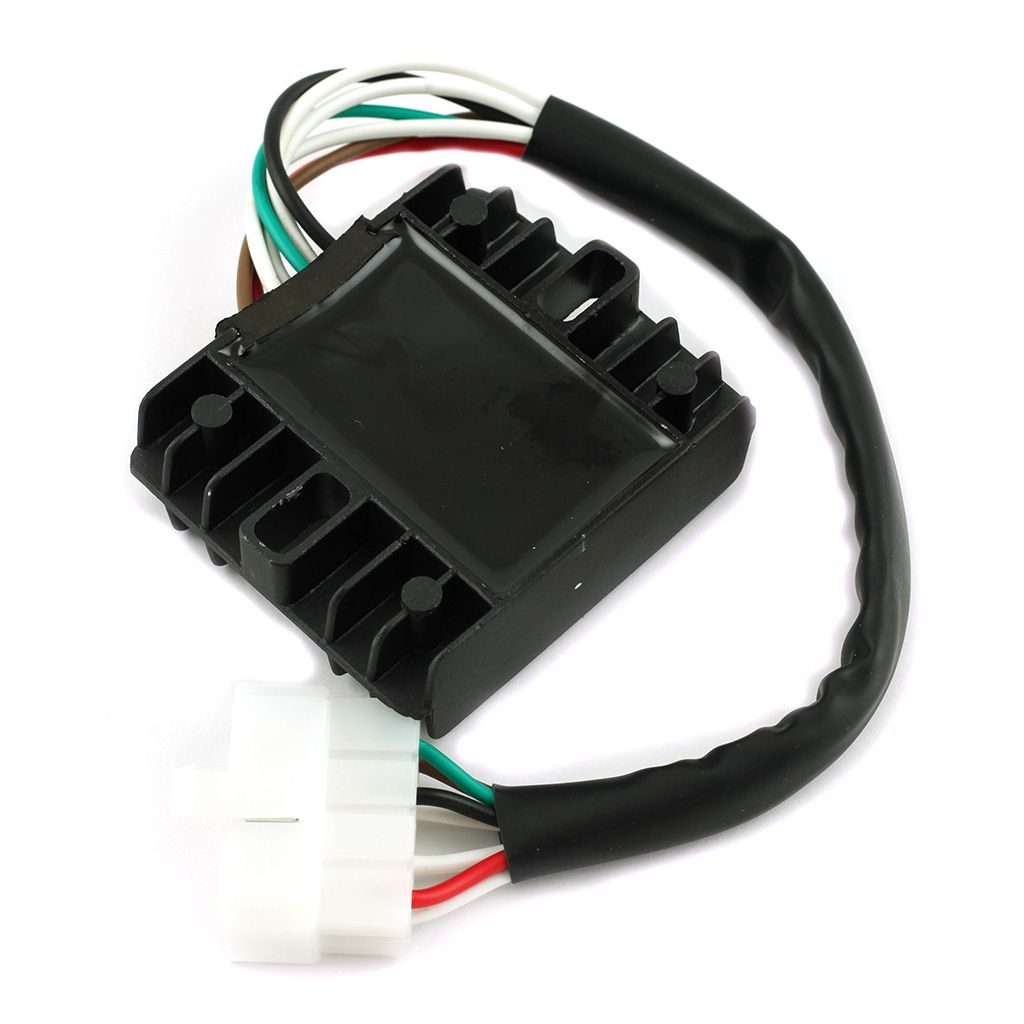

Old regulators/rectifiers can deteriorate with age, causing batteries to be overcharged, undercharged, fuses to blow and much worse – wiring to cook and catch fire. Freshen up your charging system with this new direct replacement unit. We have supplied a general wiring diagram to show the proper installation of this solid-state regulator/rectifier ( 24-2087 ). The wiring may vary depending on your model. This is to be used to identify regulator/rectifier wiring.
Fitment:
Yamaha XJ550H / K / RK (1981 – 1983)
Yamaha FJ600 (1984 – 1985)
Yamaha FZ600 (1986 – 1988)
Yamaha YX600 (1986 – 1990)
Yamaha XJ650K / LK (1980 – 1983)
Yamaha XS650 / SK (1980 – 1983)
Yamaha XJ700N / S / X (1985 – 1986)
Yamaha XJ750K / MK / R / RK (1981 – 1983)
Yamaha XJ900RK (1983)
